Electric Swing Gate Opener DC Motor with Remote and Auto Close

220V to 24V Electric Automatic Strong Dual Arm Swing Gate Opener Up to 660 Lbs Hardware Driveway Door KIT

List of Kit Packages:

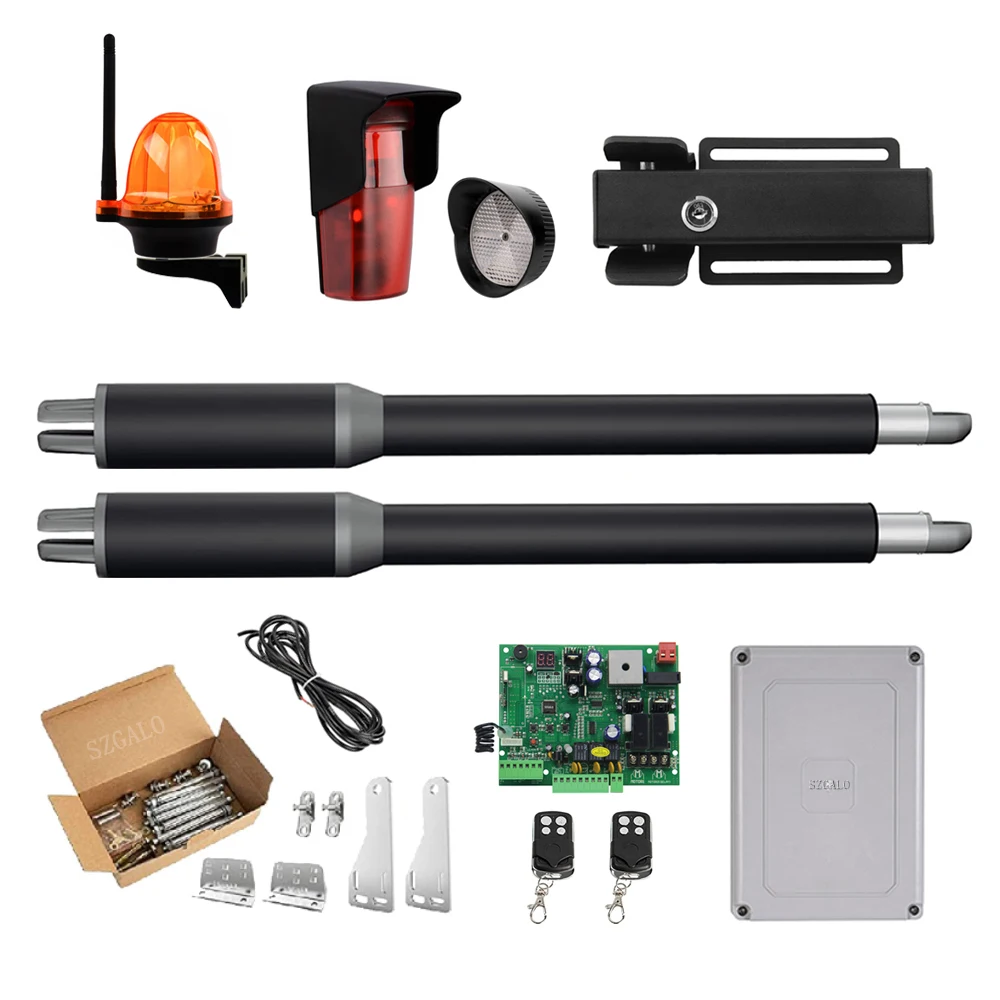

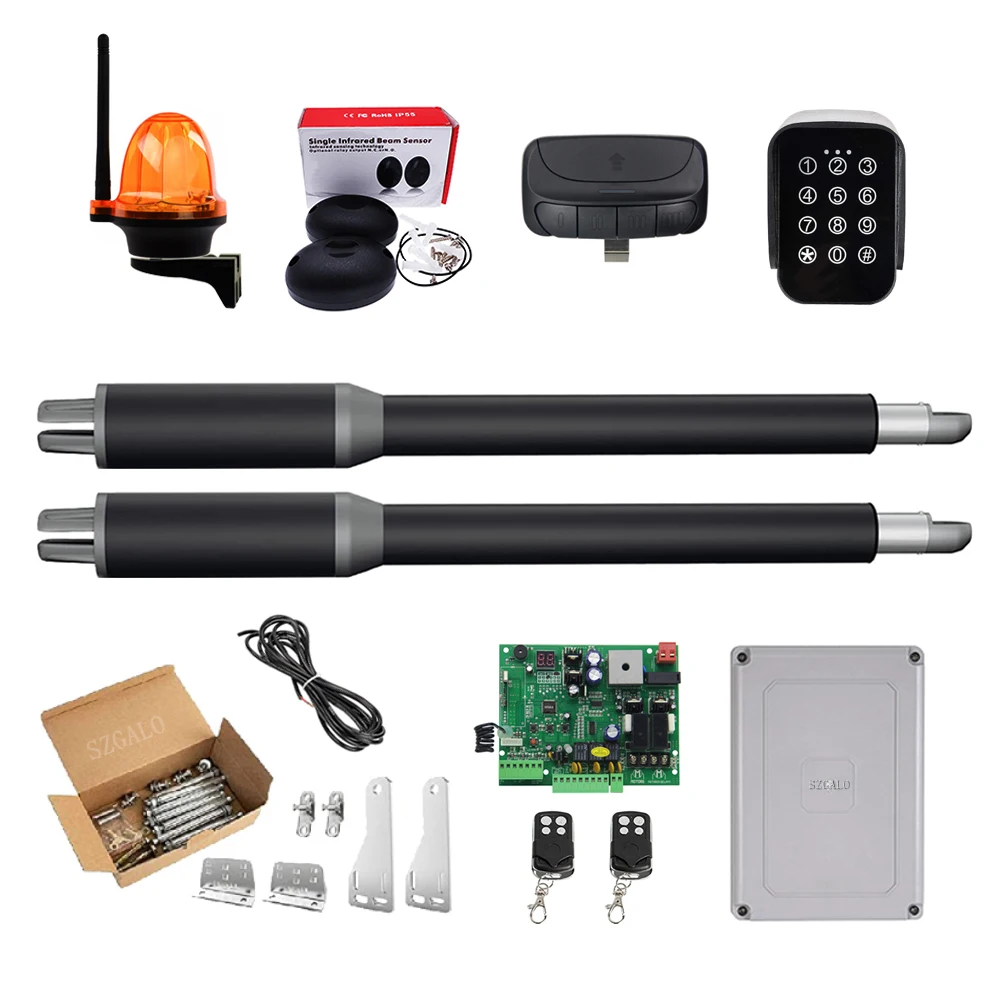

All kits are complete kits with different accessories. The content of the selected kit items will be shown in the picture.(Different content is shown in photos.)

Produrct Feacture:

1. Easy to install and operate, and easy to connect wired.
2. Open and close the gate by remote control and keypad.
3.Time Time promotion function. When open gate, speed is slow, then a little quick, and when closing the door, speed is slow again.

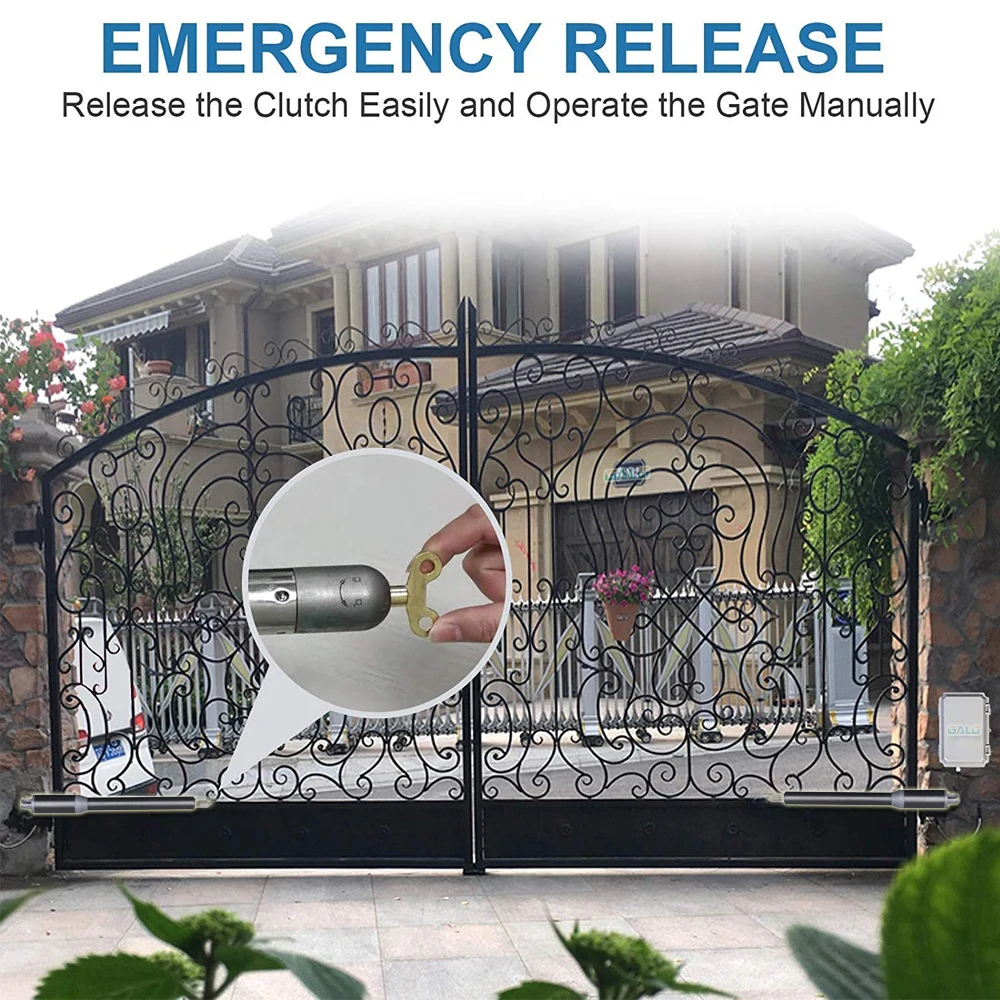

4. In case of power failure, release the clutch easily and operate the gate manually.
5. Stop working when the gate meets with an obstacle.
6. Rod’s max travel is 300mm.
7. Motor’s Power: 24VDC 40W
8. Running Speed: 1.6 cm/s
9.Run travel : 300mm
10. Max single leaf gate width: 2.5M
11. Max single leaf gate weight: 250KG

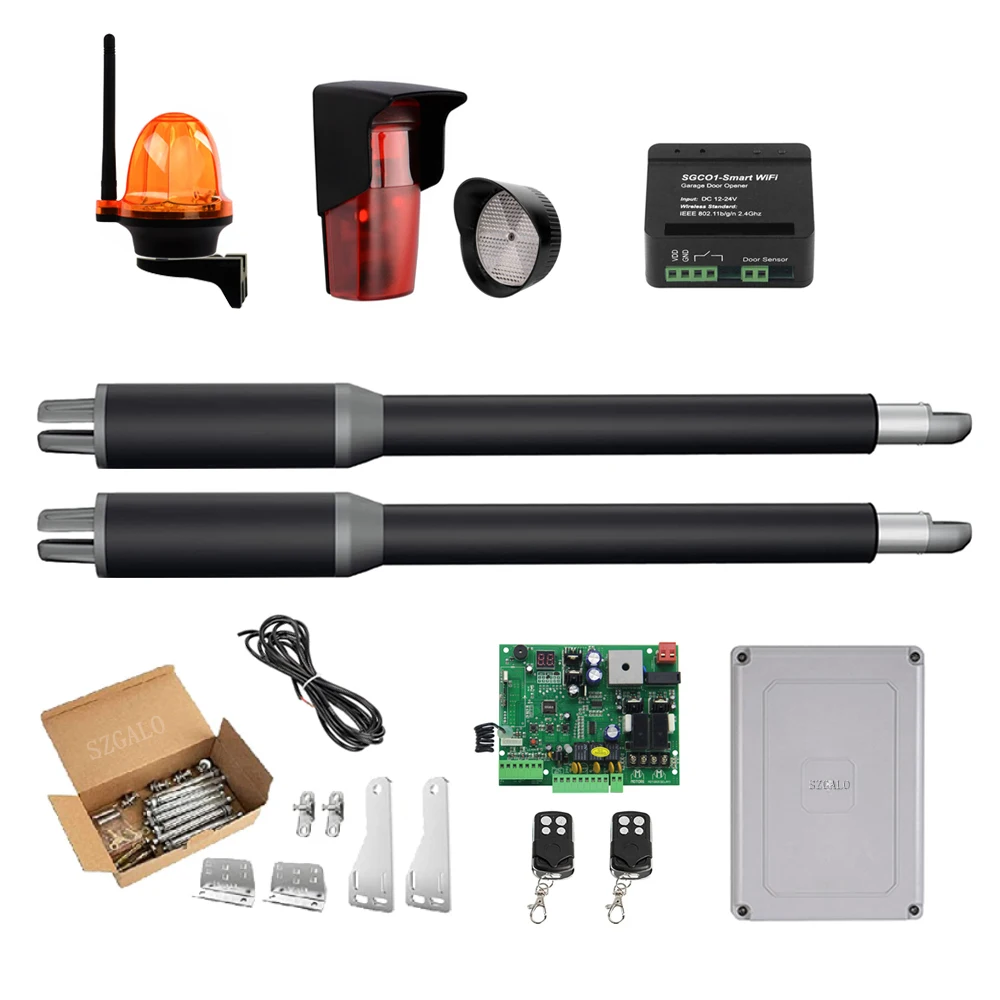

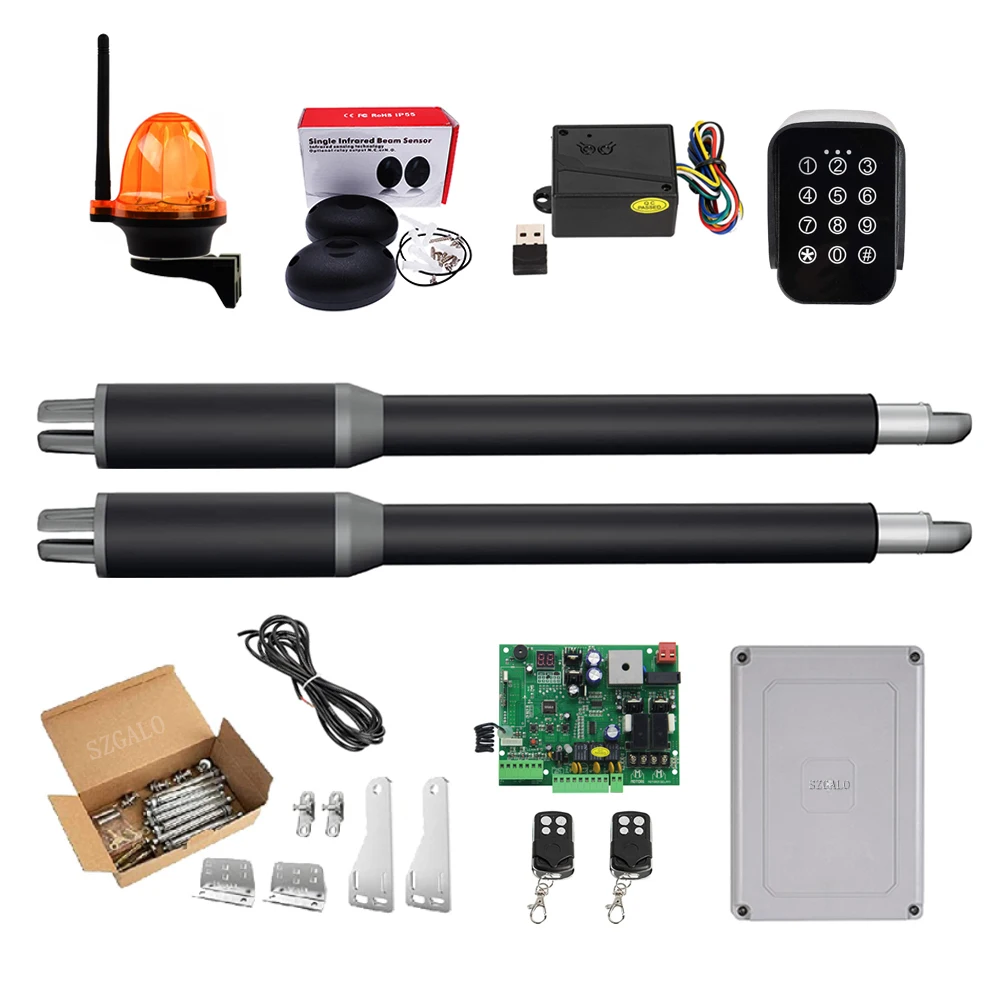

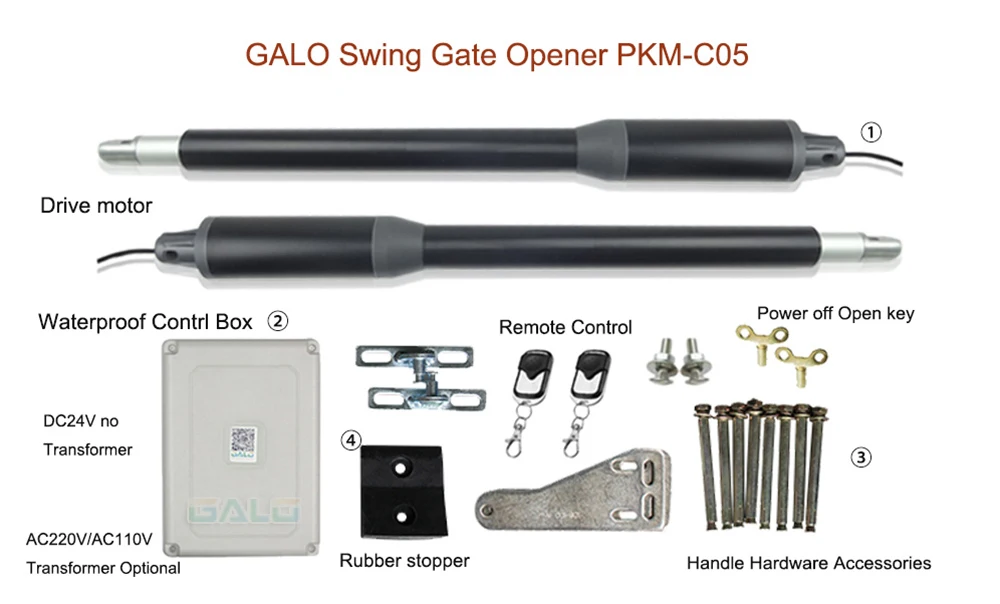

Standad KIT Components:

2* Arms Gate Openers (drive motor)
1* Control Box (with transformer)
1* A set of Hardware Accessories
④1*Rubber stopper
⑤2* Remote Control
⑥1* Manual English
Accessories optional; select color kit shown in photo
In some countries with a cold climate, we add antifreeze oil inside the motor. It can work in a cold environment.

Full kit include Necessary installation accessories

Control Box Details:

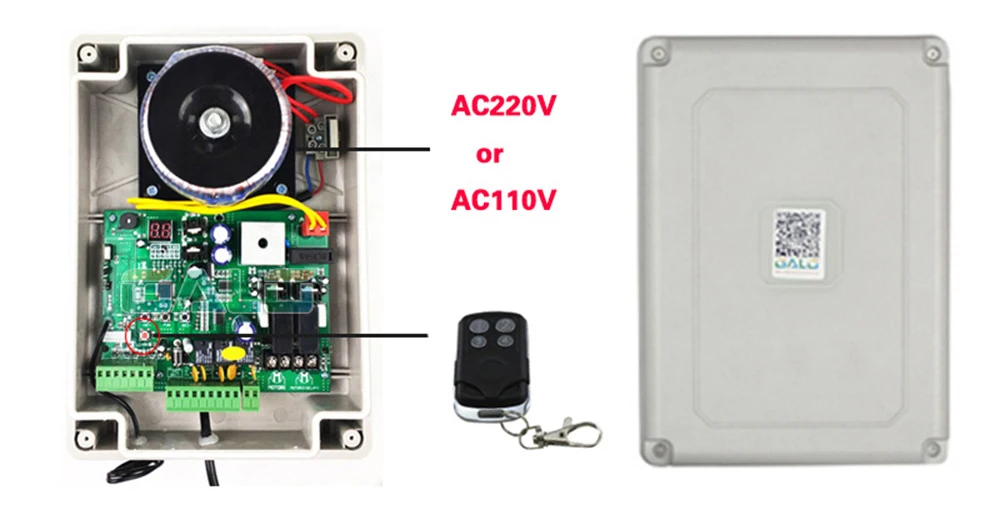

Input AC110V or AC220V order mark or message seller.
The conventional control box cannot be equipped with a spare battery. The large box can be loaded with a spare battery. The battery is not included.

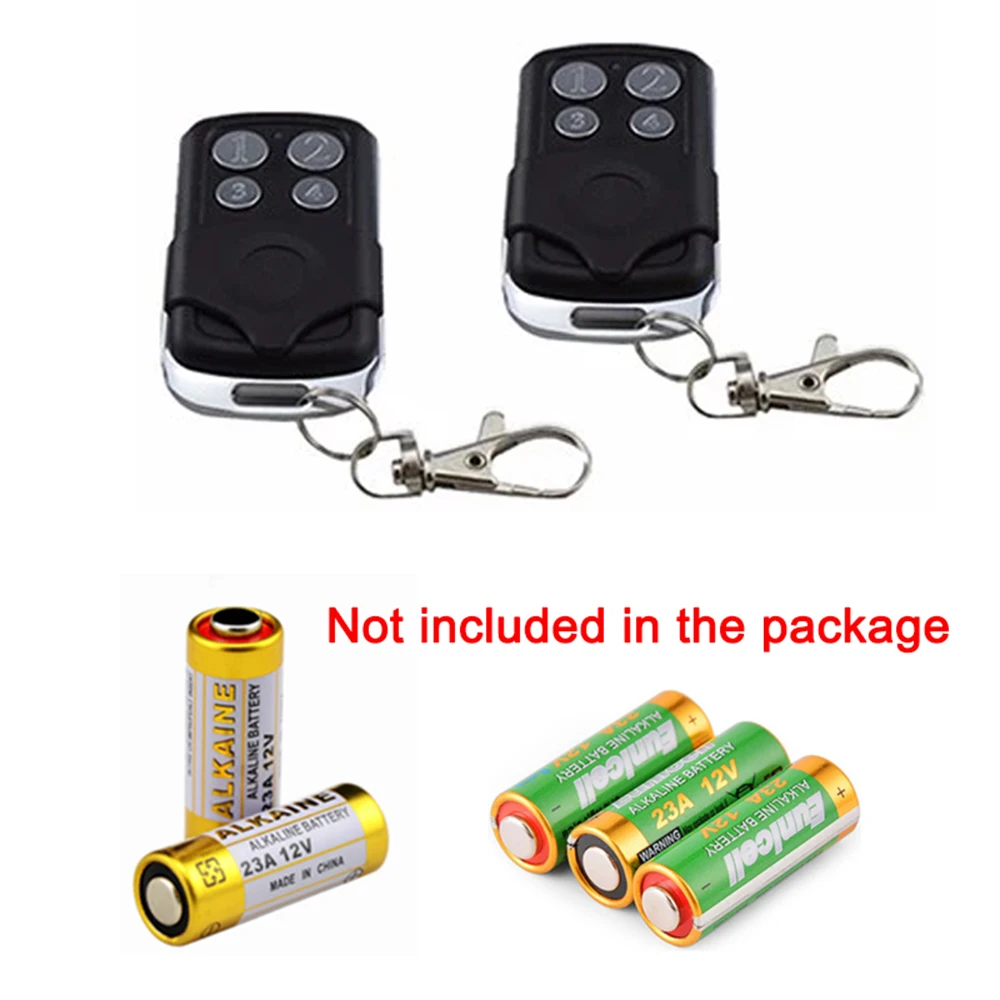

Remote Control 23A12V Battery is Not Included

Most of our goods are transported by Fedex, UPS, DHL, etc. express delivery.For the safety of the entire cargo and the aircraft, the shipment is not allowed to have batteries.Please buy it locally in advance

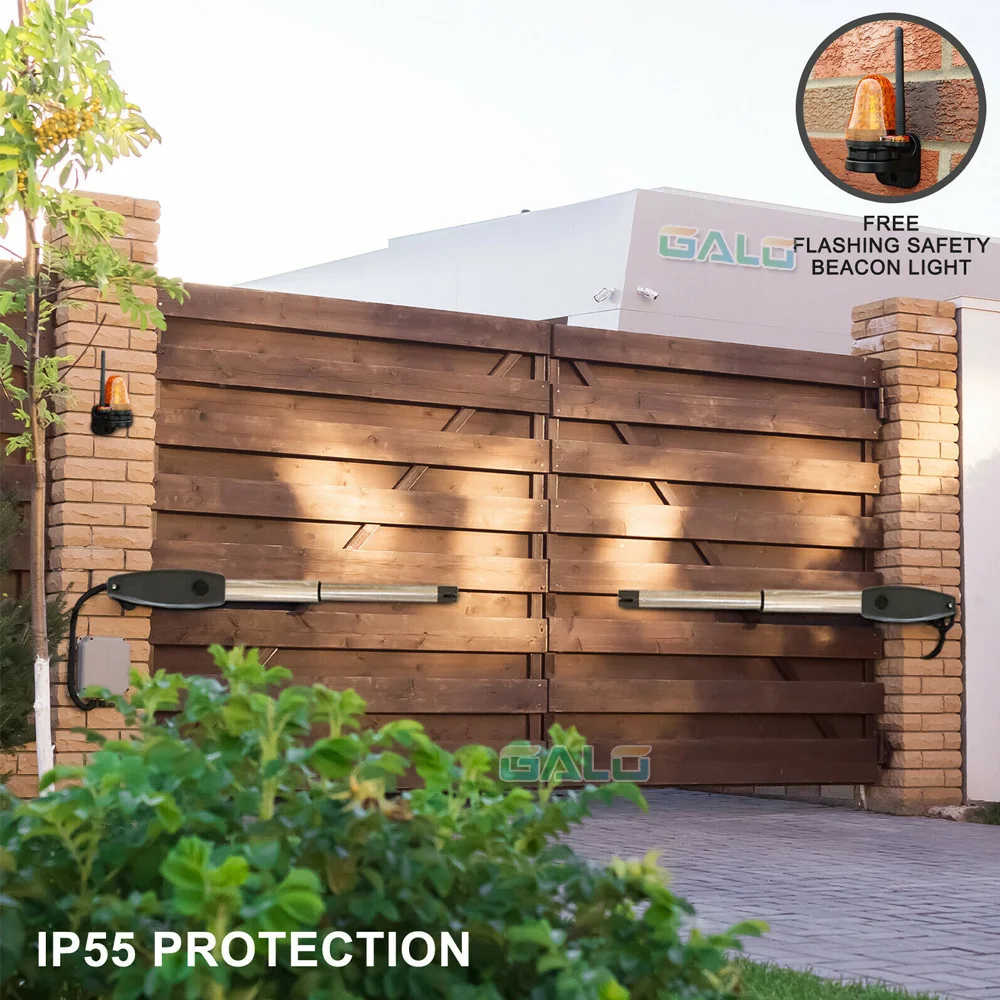

Control Box Outdoor Waterproof Design

The closed control bin, with its IP65 waterproof rating, can directly face harsh weather conditions. -20 °C ~ + 50 °C

Extra Security IR Photocells (Optional Accessories)

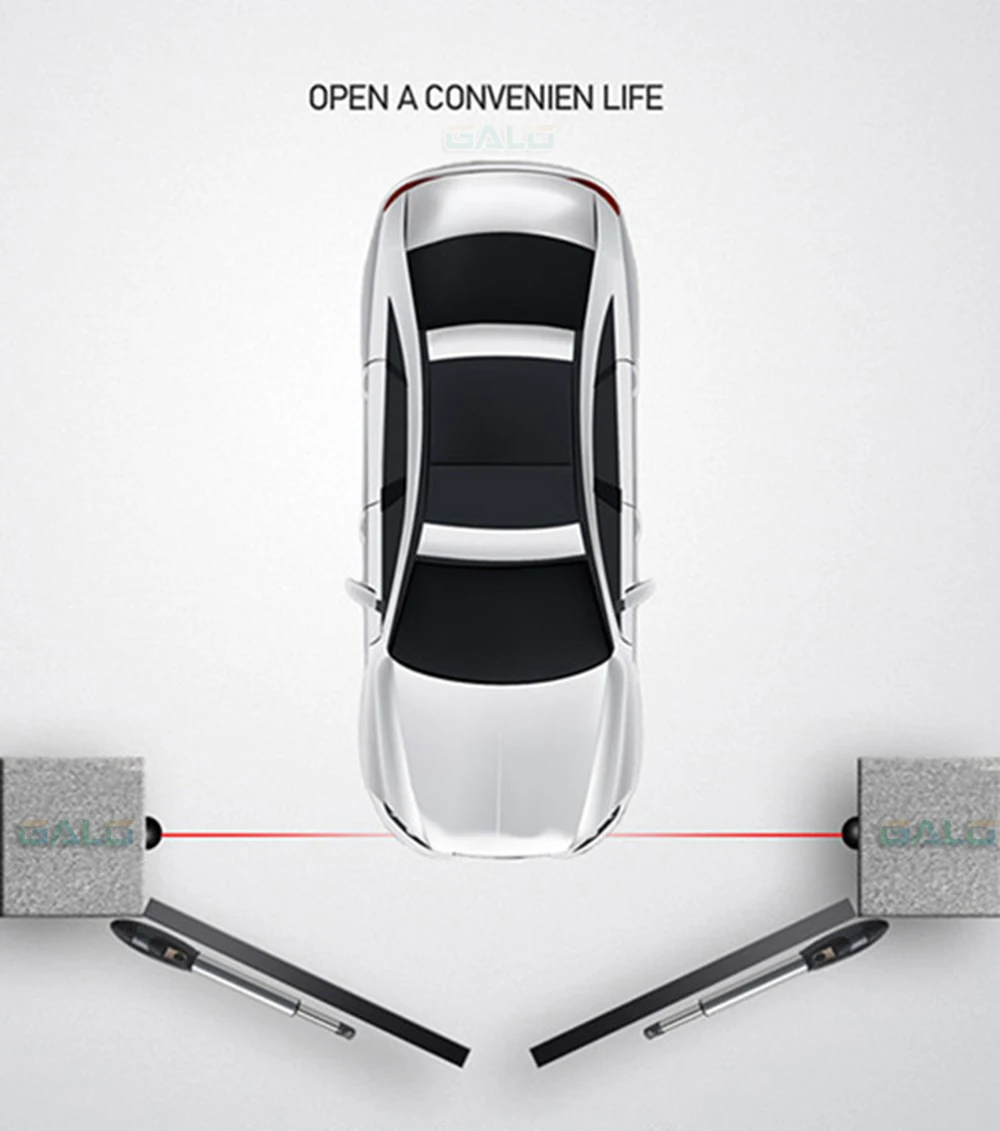

The system itself has an impact rebound function. For more secure protection, some users can add a photocell sensor. for outward gate. When the gate closes, cuts IR, or the kid runs through the closing gate, the gate will be open.

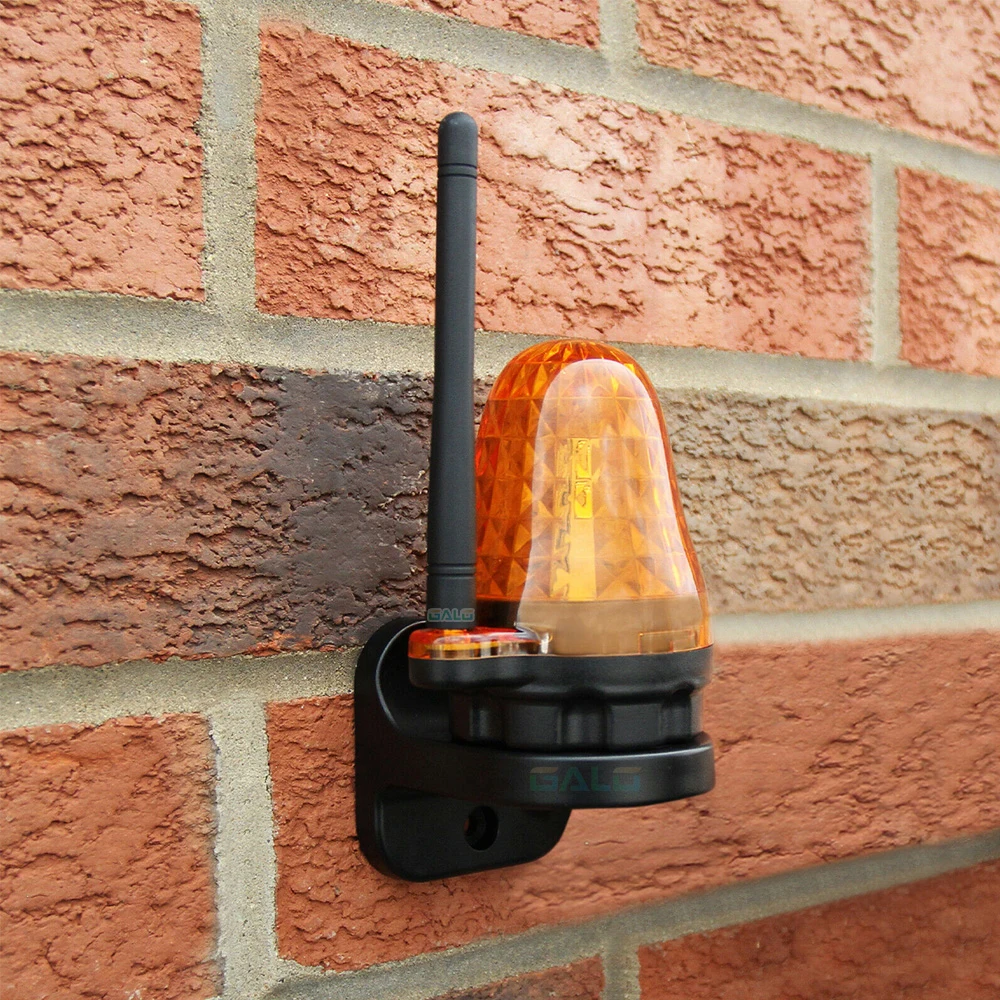

Flashing Warning Light (Optional Accessories)

When the door opener is turned on at night, the flash can alert intruders in the dark.(The color of the lamp is optional.). (Pay attention to the color when placing the order.)

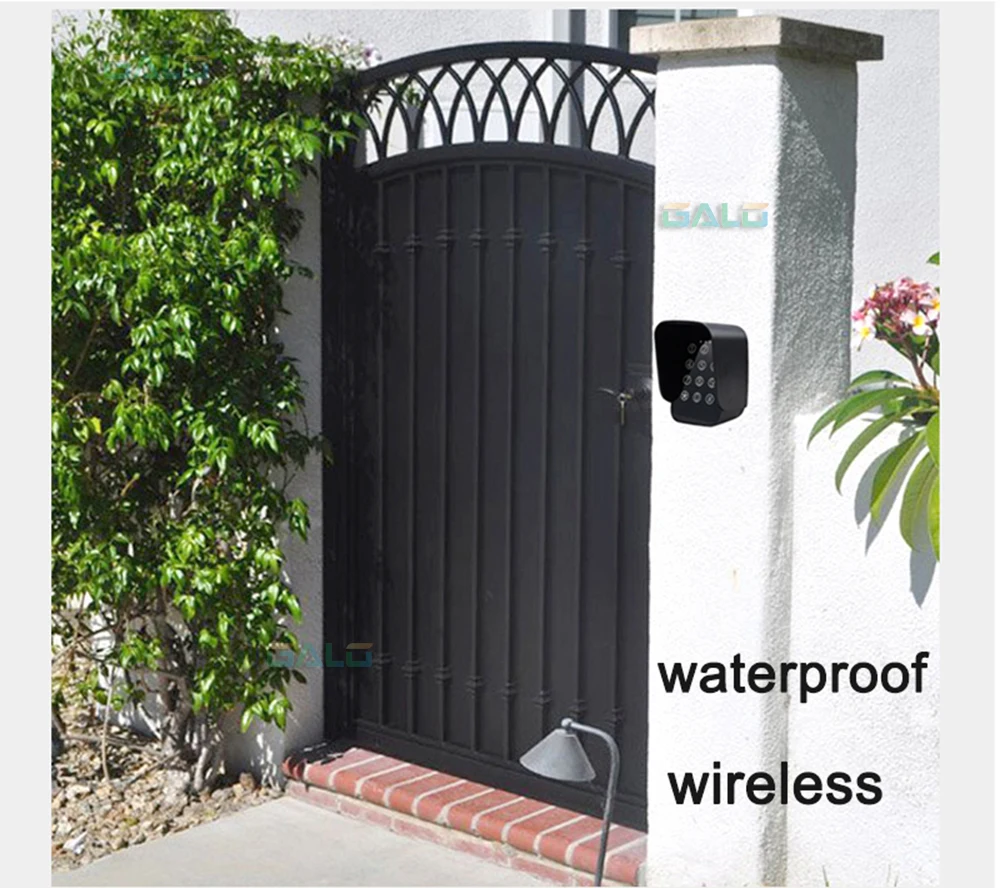

Wireless Password Keypad (Optional Accessories)

When there are many people in your family, then you need a keyboard. As long as you know the password, the gate will open the door for the master.

The Remote Control in Car (Optional Accessories)

There are too many keys in life today, and my belt is full, which is simply a burden.
Don’t worry, the remote control button inside the car is hung on the sun visor, and it is more convenient to open the door

Wifi Control Module (Optional Accessories)

Load the wifi module; you can control the opening of the door directly on the mobile phone app. Remote control, not limited by distance, is needed to ensure the device is networked and supports 2.4G wireless networks. suppoer Google home Wizard voice control.

GSM Remote Control/WIFI Camera (Optional Accessories)

Mobile app remote control, mobile phone card SIM needs to be installed, 2G only
The camera is a separate app and needs to be connected to the Internet. In order to see the working status of the gate and record security, optional accessories

Gate Lock (Optional Accessories)

In order to ensure the safety of the door and prevent the door from being blown by the strong wind, please use additional door locks or automatic door locks. remote control open the lock and gate at the same time.
But the DC12V RFID lock, this is for the side door, not the same time to open. It is independent, but the power supply of the control box can be used.

Support for Solar Systems (Optional Accessories)

Can be plugged into a solar system, using a home circuit, or solar powered. Note that we cannot transport the batteries and need to prepare the batteries yourself.

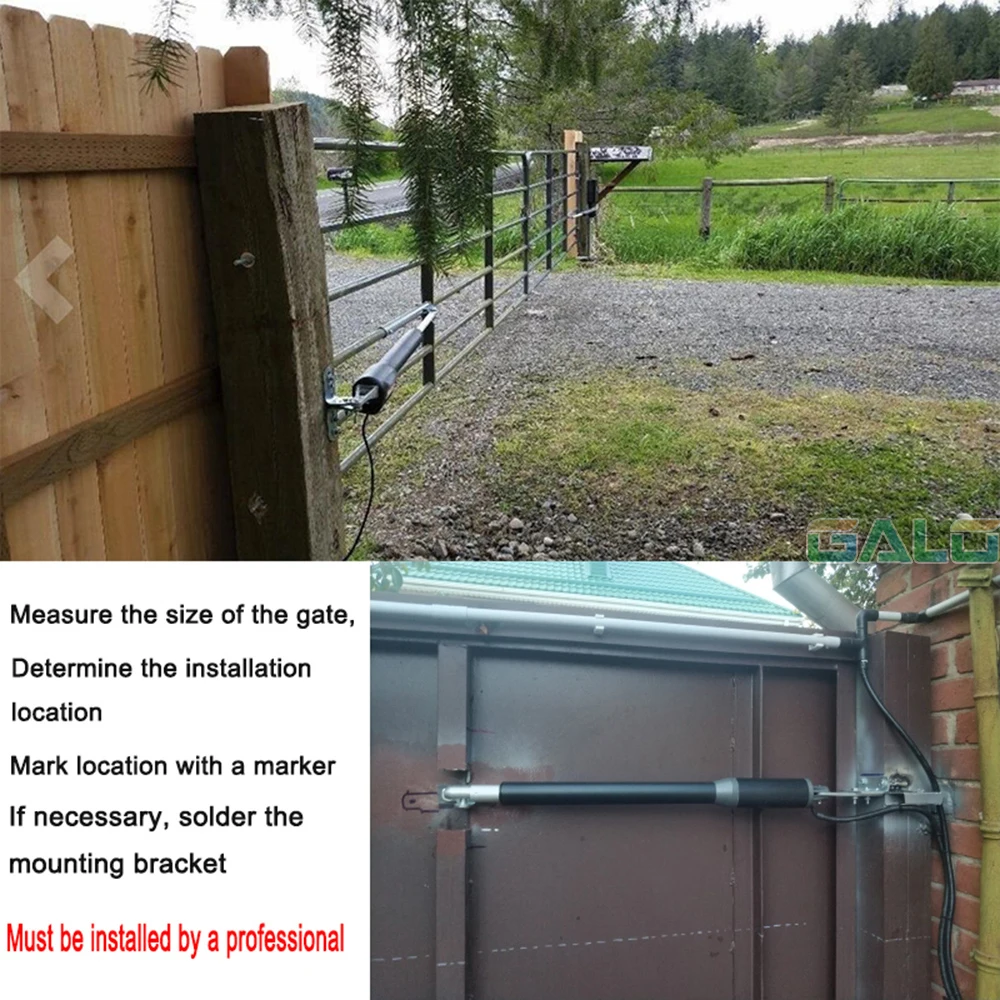

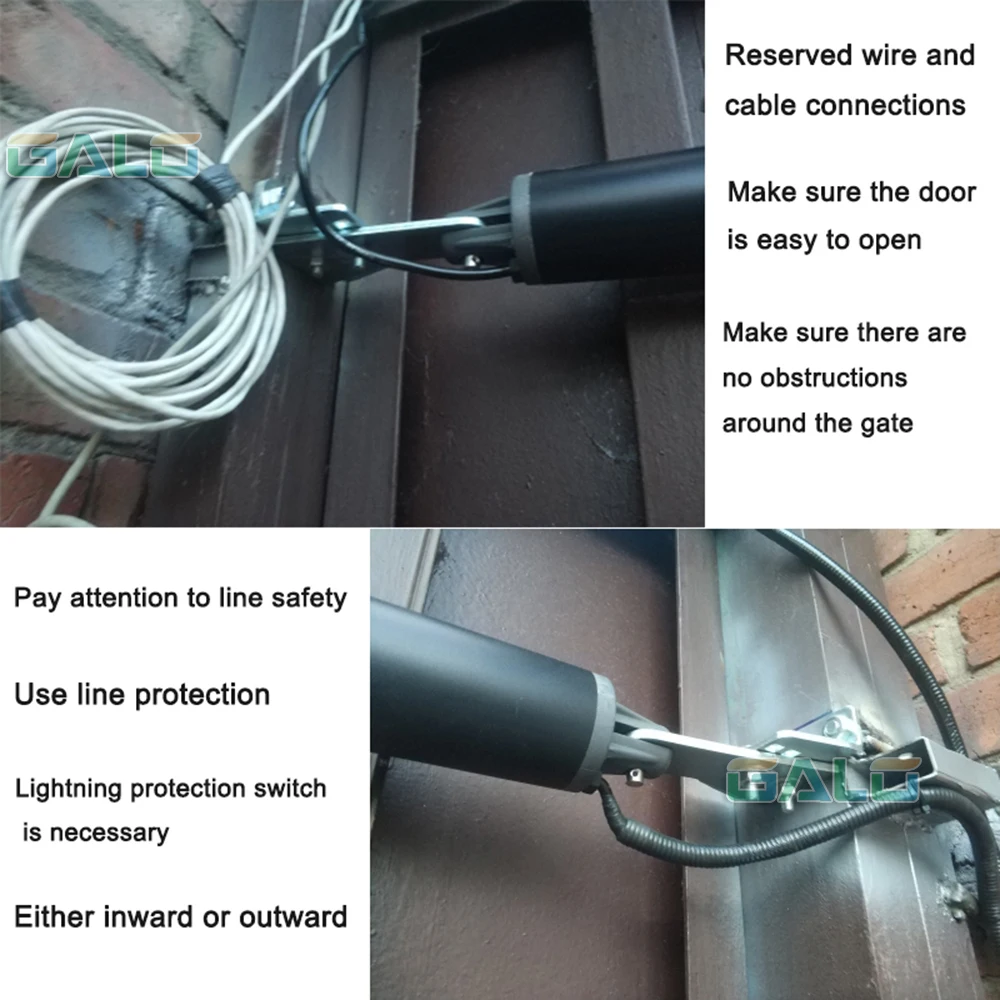

Installation Details:

Preparation before installation:
1. Prepare the electric drill for drilling, the motor arm needs to be fixed on the wall or wood;
2. Prepare power protectors, lightning protection switches, power strips, and home wiring cables;
3. Some line protection tubes can be prepared;
4. If it is an iron gate, you need to prepare electric welding if necessary.

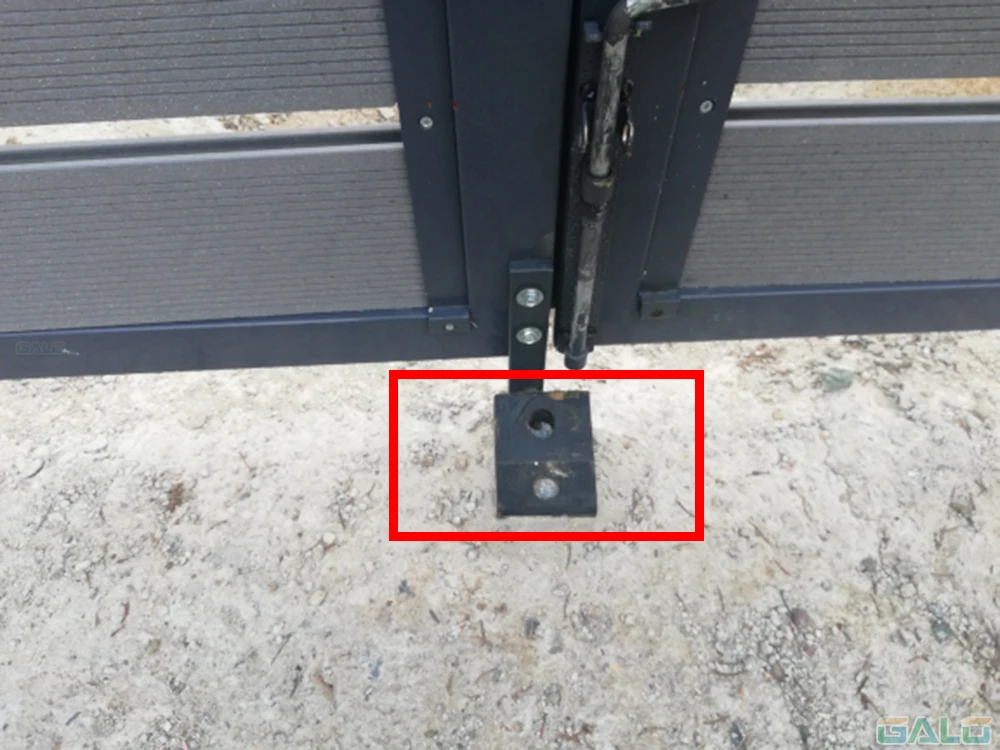

Door Stop

It is necessary to install a rubber stopper at the bottom of the gate.
It is recommended to install in the horizontal position at the bottom of the door, 5 cm away from the door opening direction

Smart Control Center

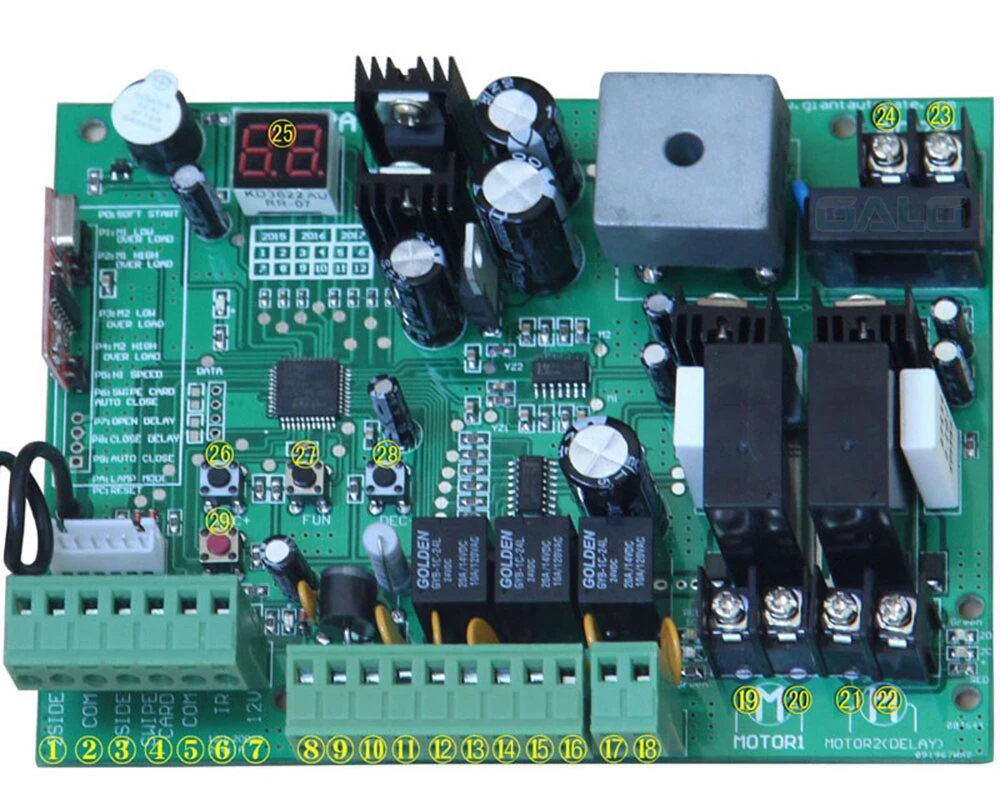

Function indication of corresponding port

1. A SIDE terminal is used for connecting any external device that operates double gate
2. COM terminal is commonly used for connecting the ground” of external devices
3. 1 SIDE terminal is used for connecting any external device that operates single gate
4. A Card terminal is used for connecting any external devices that will operate to open the gate
5. COM terminal is commonly used for connecting the ground” of external devices
6. An infrared terminal is used for connecting a photoelectric sensor
7. 12V DC output is used for connecting a photoelectric sensor (Continuous output current <=200mA)
8. 24V battery output is used for connecting the back up battery +
9. 24V battery output is used for connecting the back up battery –
10. 24V DC output is used for connecting external devices. (such as a photoelectric sensor, max current output 1A)
11. GND is used for connecting the ground” of external devices
12. 24V DC lamp output is used for connecting flash light +.
13. 24V DC lamp output is used for connecting flash lights.
14. 24V DC lock output—the NF terminal which used for connecting the electric lock
15. COM is COMMON used for connecting the ground” of lock
16. 24V DC lock output—the NA terminal used for connecting the magnetic lock
17. 24V DC alarm output
18. 24V DC alarm output
19. and 20. The motor 1 terminal is used for connecting the motor 1 installed on the gate that opens later and closes first. This terminal connect 1st red wire (counted from your left hand side to right hand side)
21. and 22. The Motor2 delay terminal is used for connecting the motor 2 installed on the gate that opens first and closes later. This terminal connects the 1st blue wire (counted from your left hand side to your right hand side). NOTE! If for single gate, the gate motor just can connect the Motor2 delay terminal.
23. AC24V input is used for connecting the transformer
24. AC24V input is used for connecting the transformer
25. digital display is used for showing you the setting data
26. INC+ is used for figure increase when setting the data
27. FUN is used to store the data
28. DEC- is used for figure decrease when setting the data
29. The learning button is used to program/remove remote

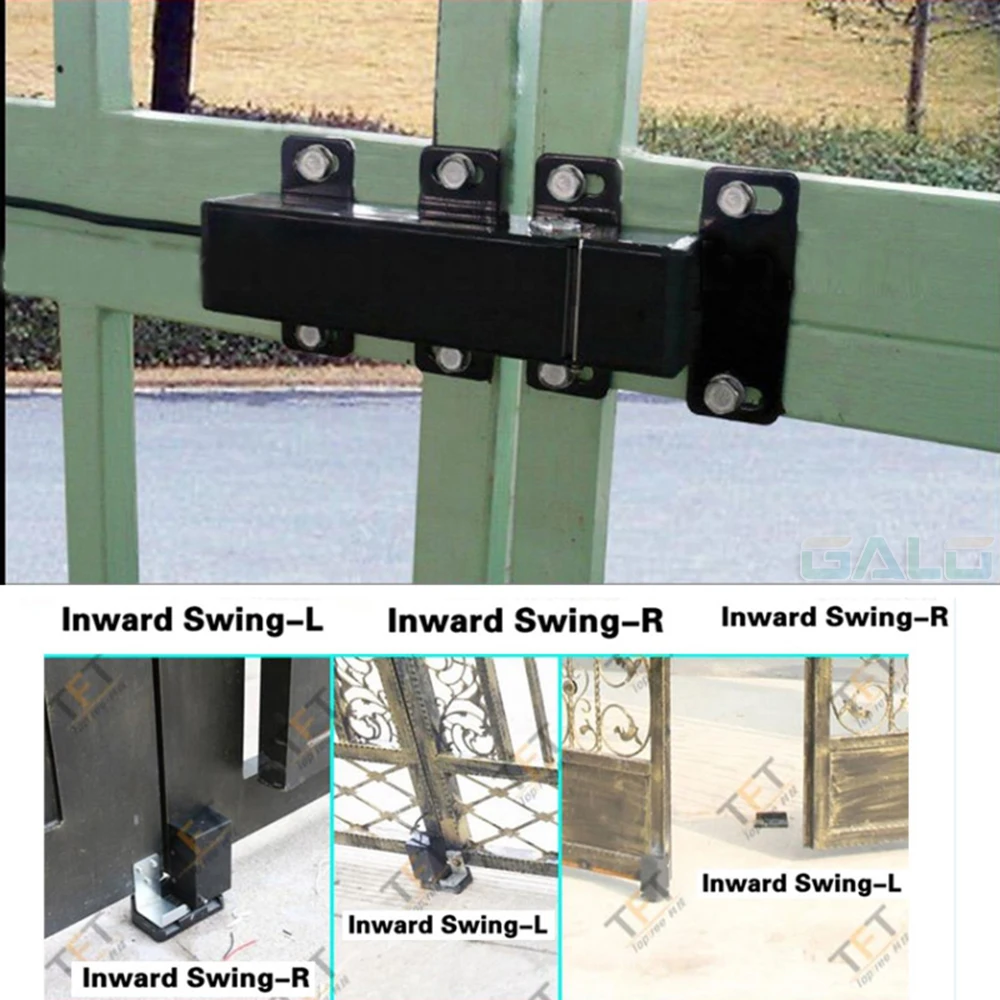

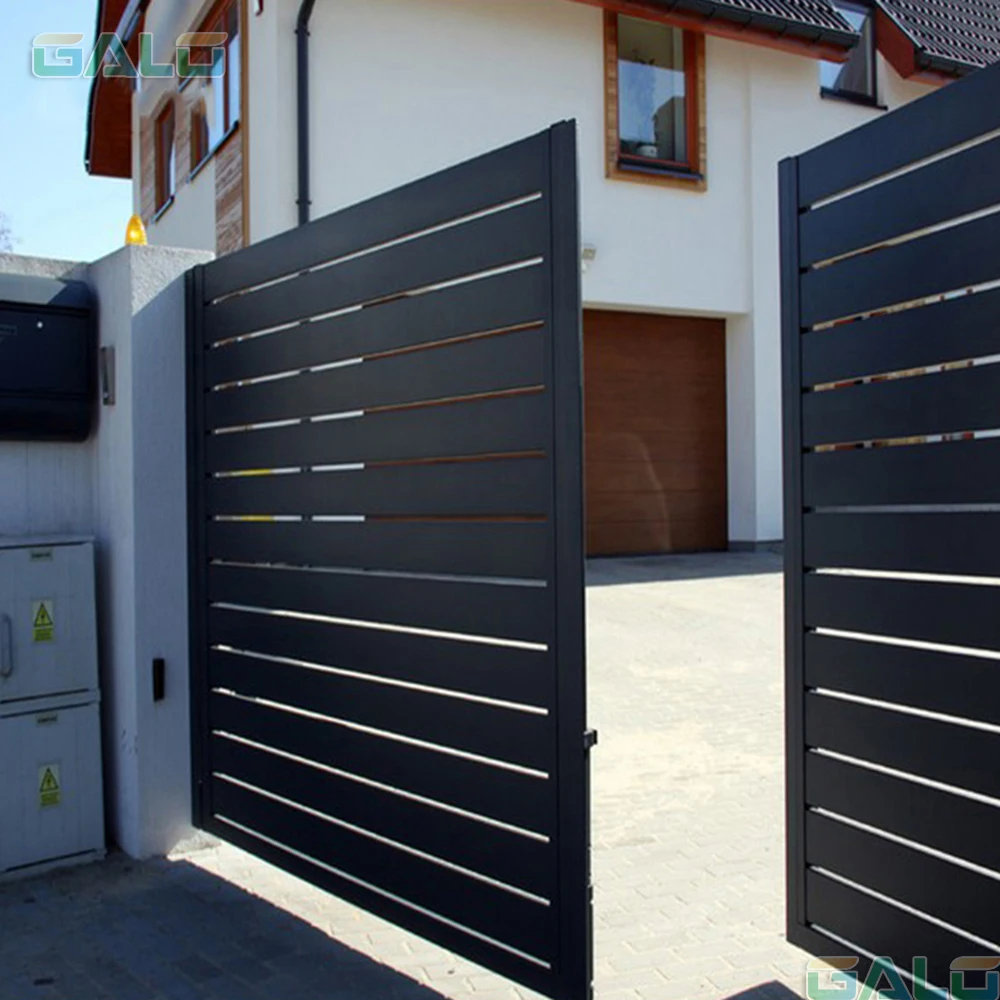

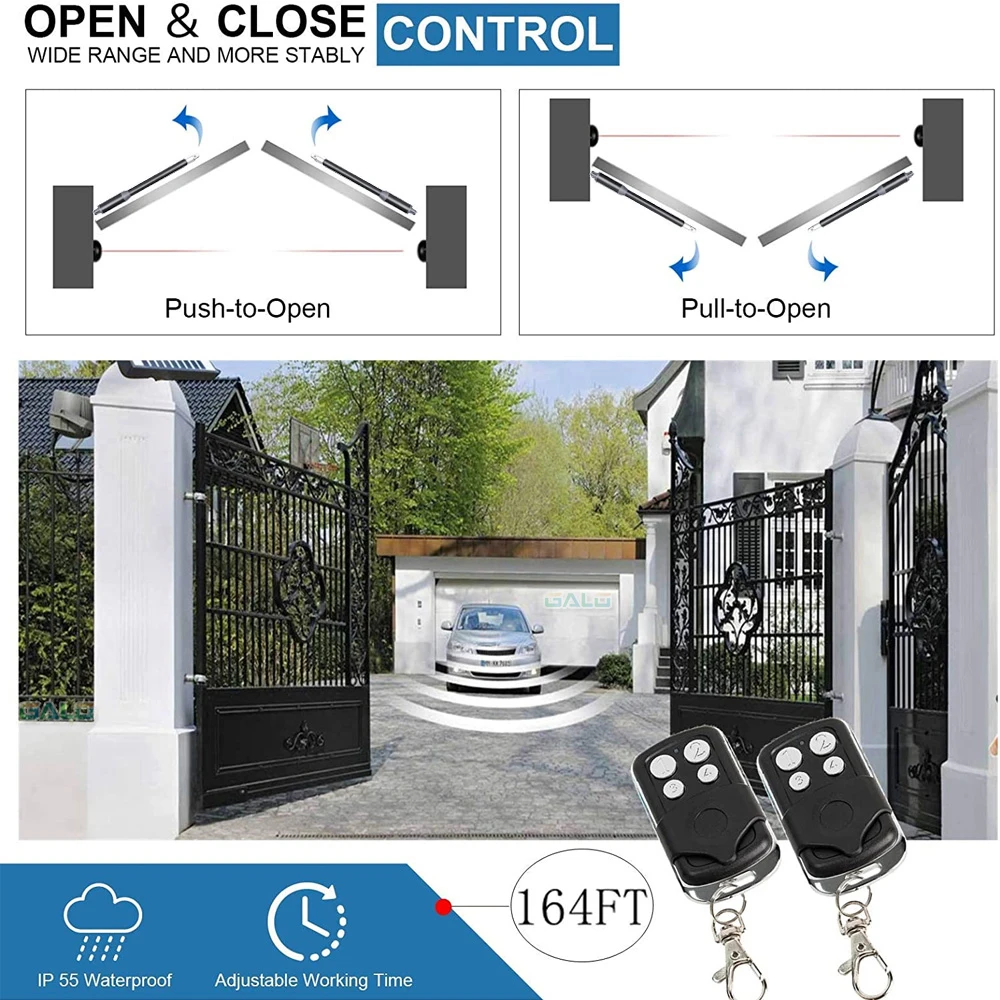

Support Inward and Outward Opening

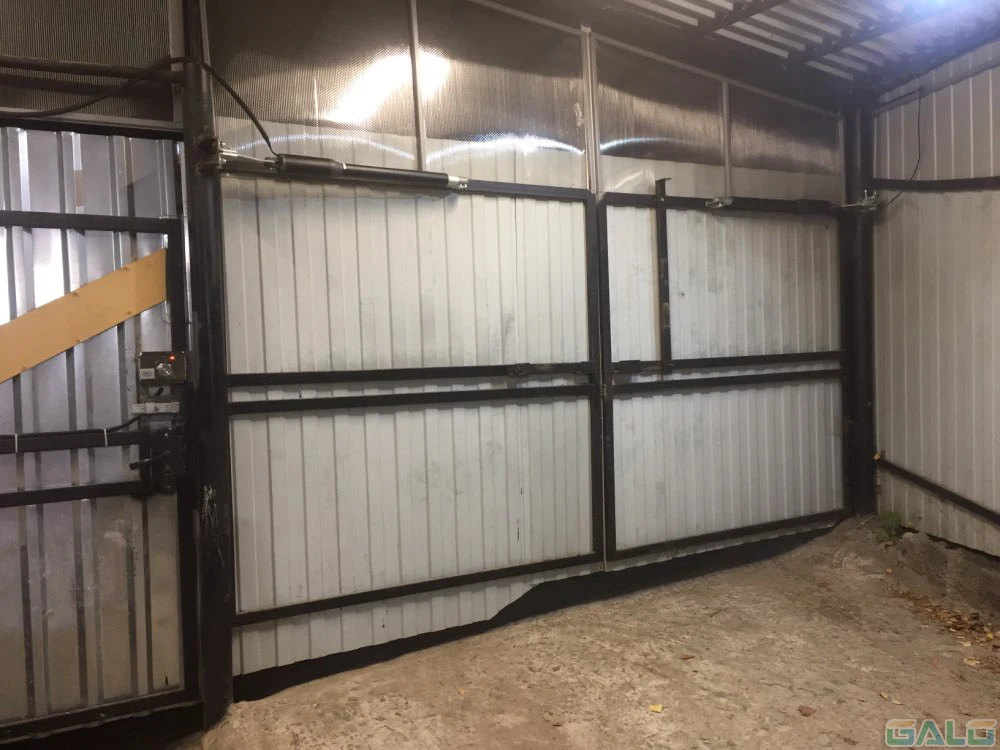

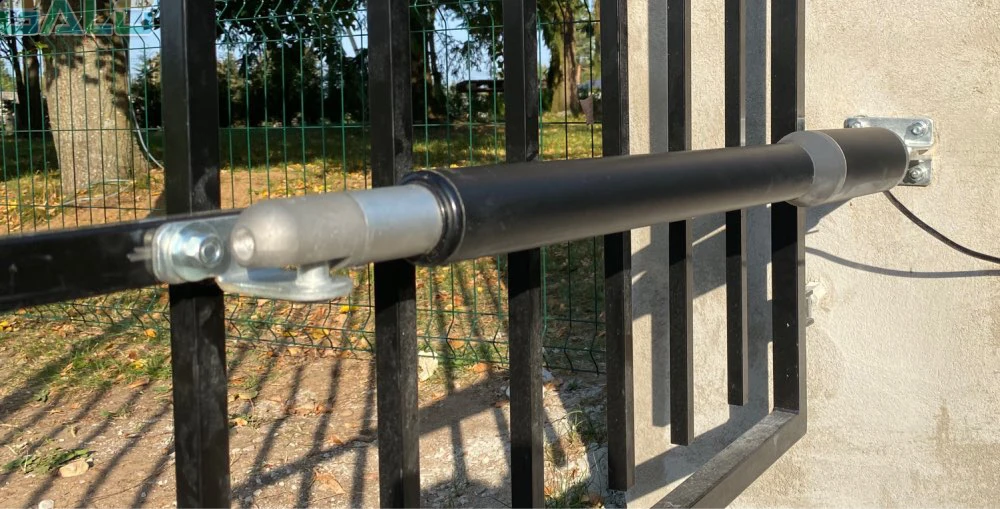

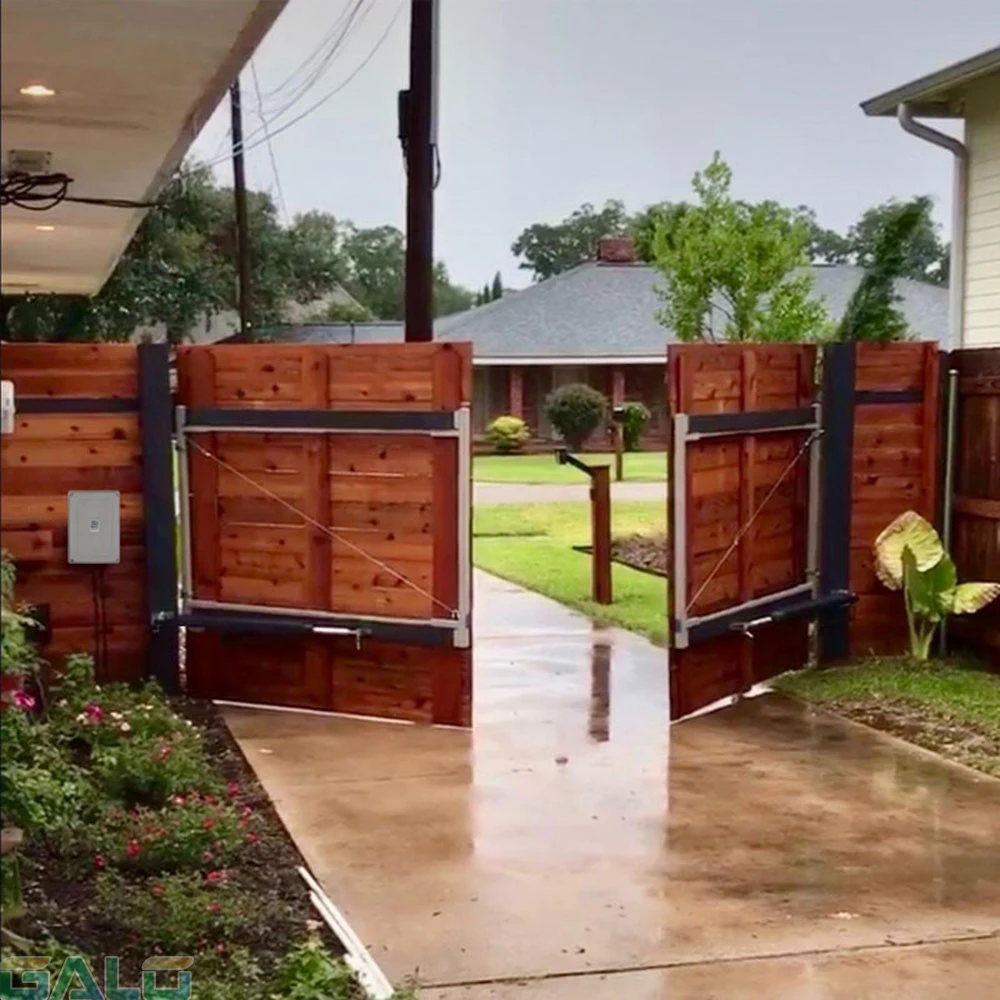

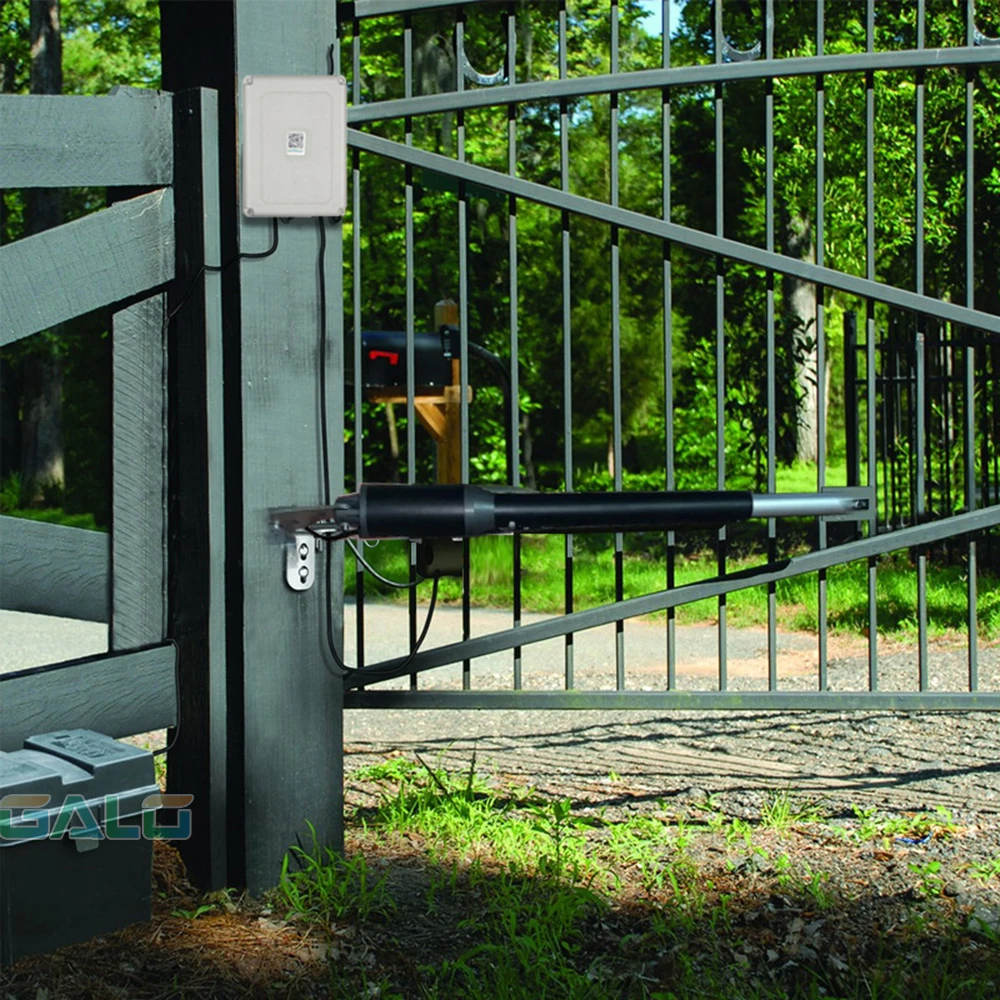

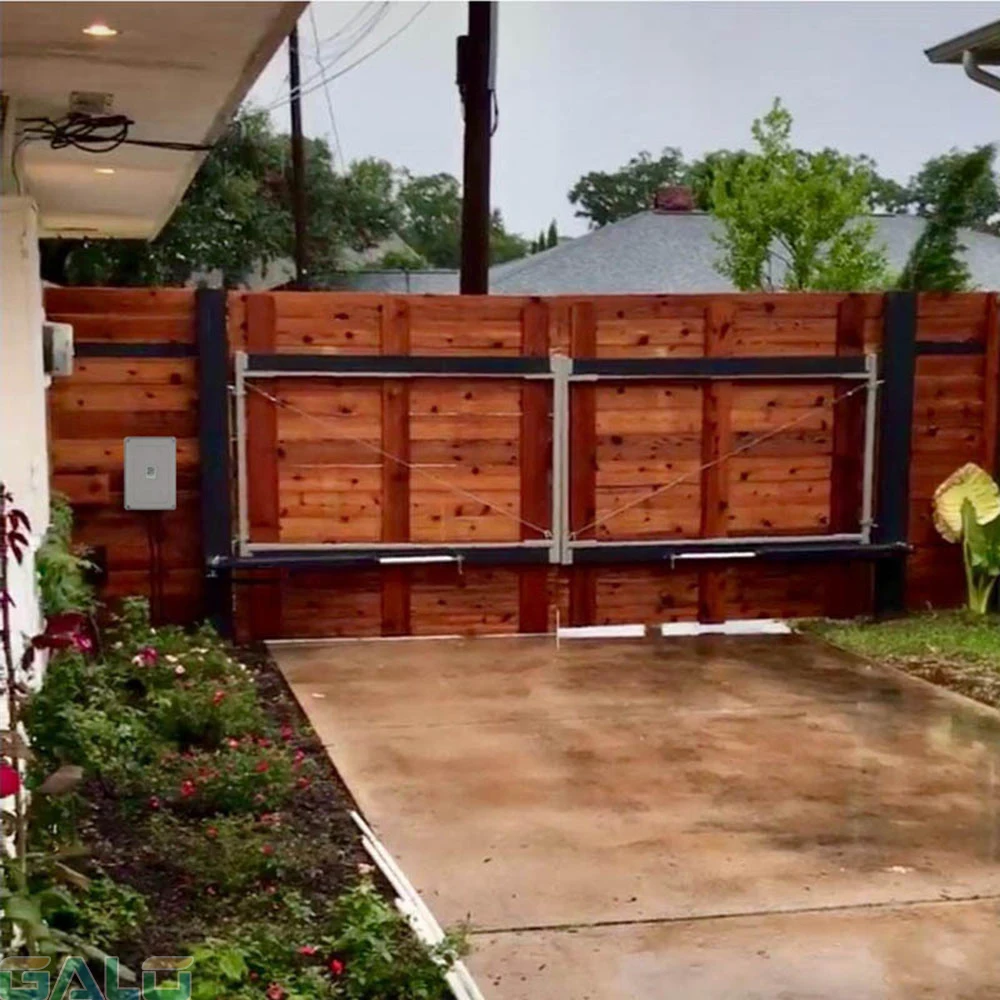

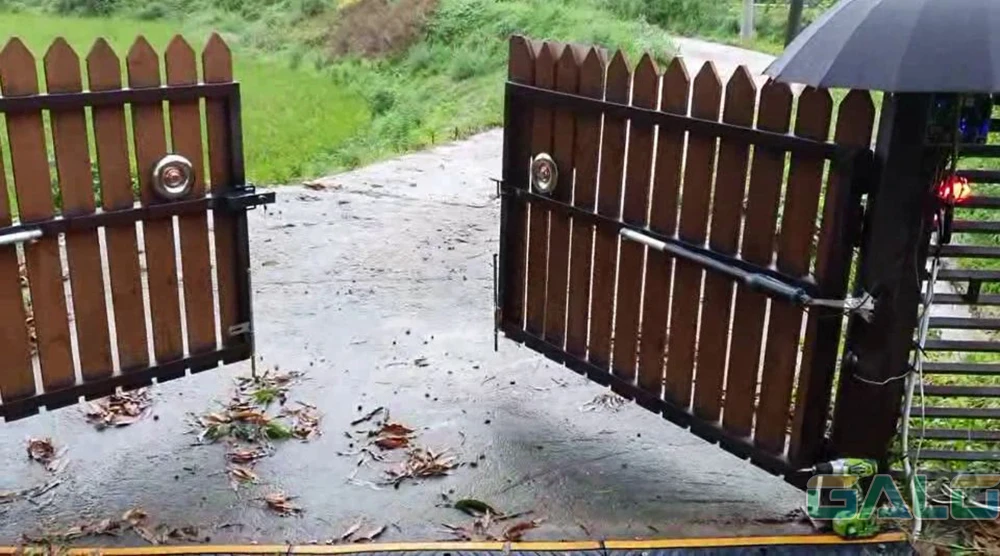

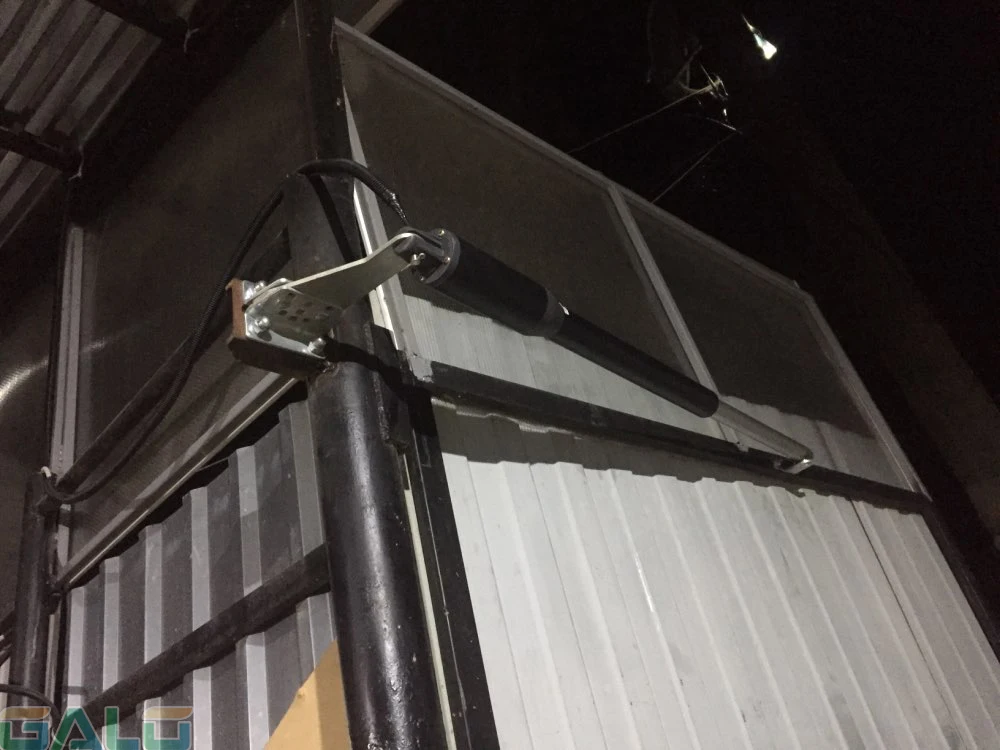

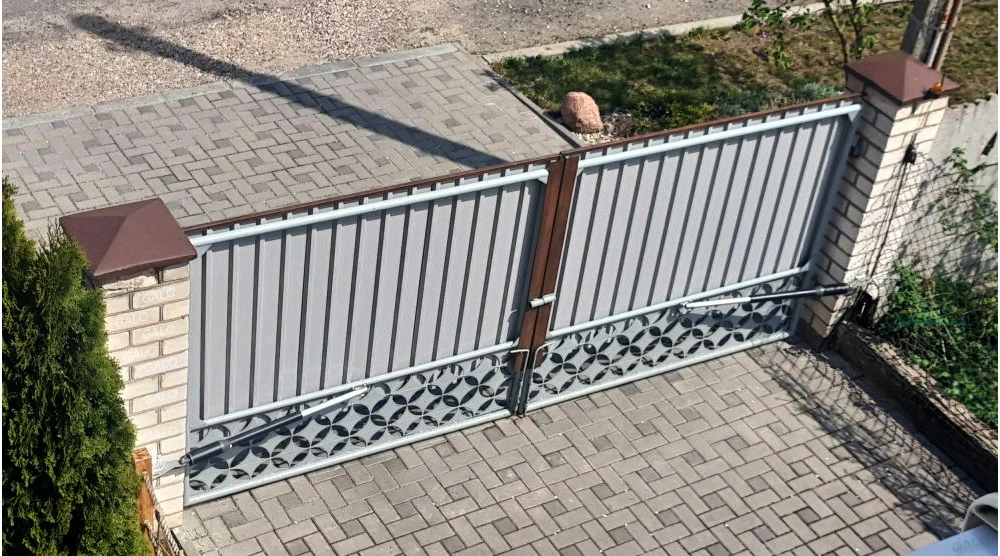

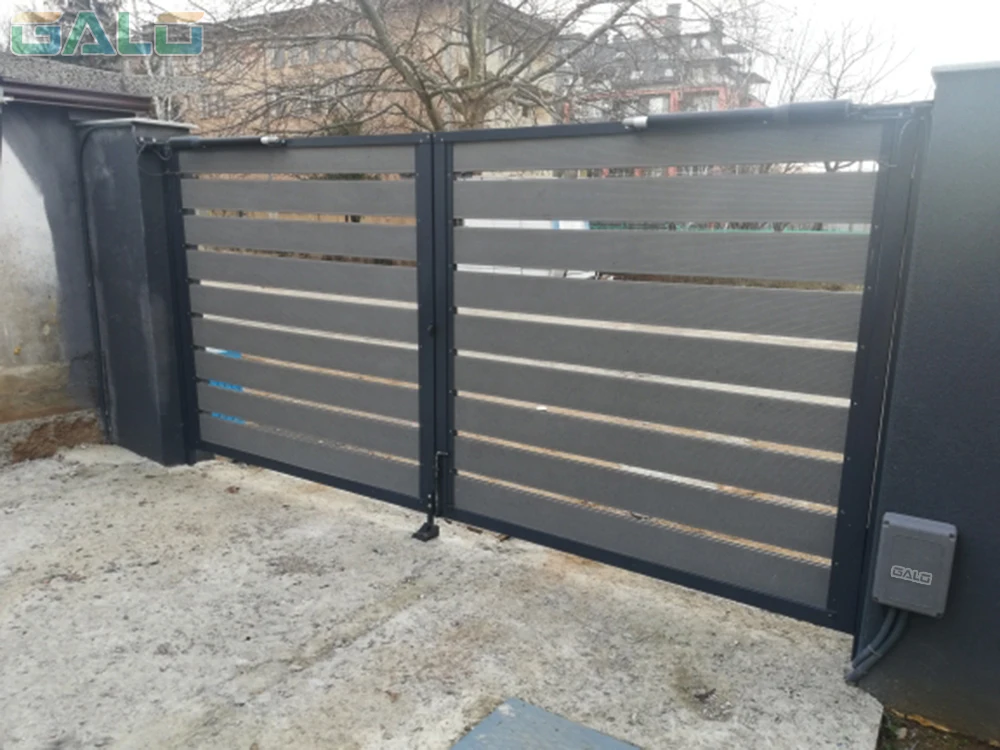

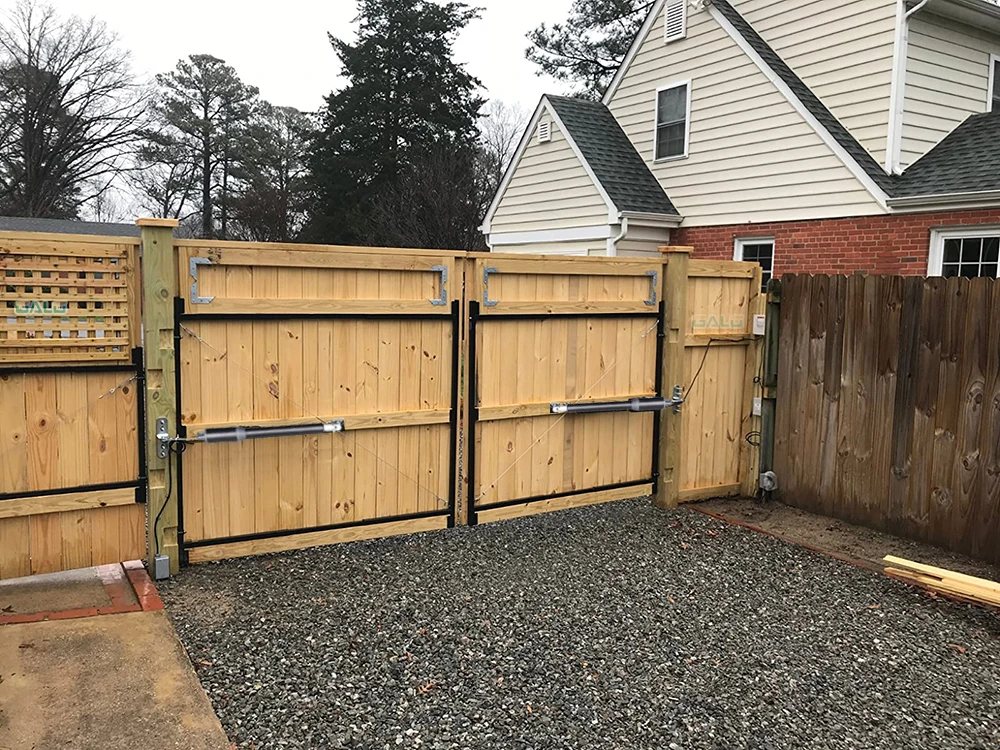

Actual Effect of Installation

For reference only
